Resource Pools

Resource Pools are our answer to manage resources in a multi-tenant Kubernetes cluster. Strategies on granting quotas on tenant-basis

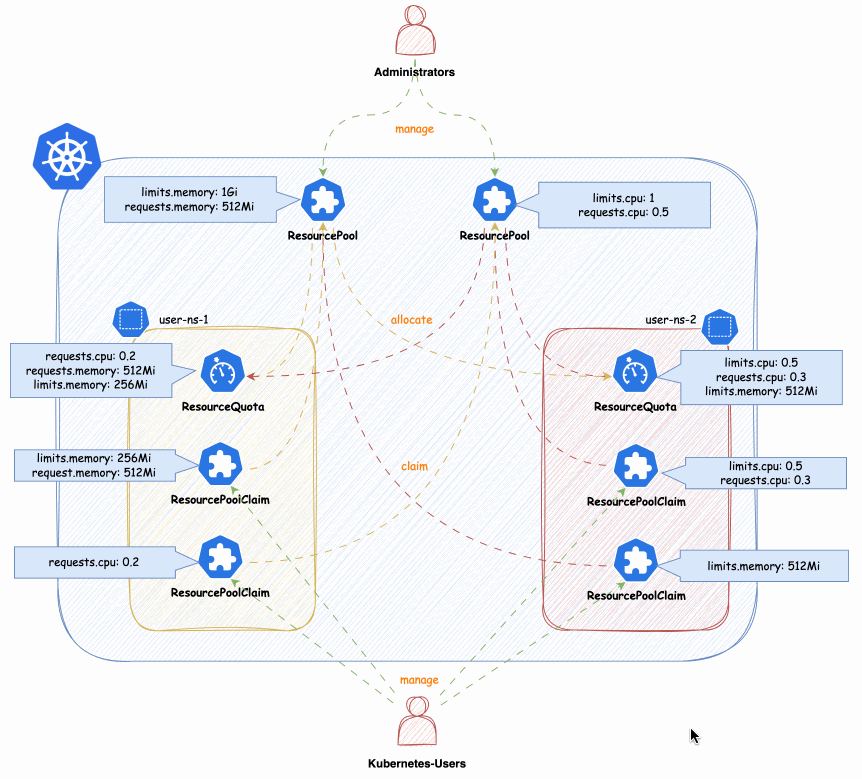

Concept

resourcepools

Benefits

Shifting left now comes to Resource-Management. From the perspective of Cluster-Administrators you just define the Quantity and the Audience for Resources. The rest is up to users managing these namespaces (audience).
Better automation options and integrations. One important aspect for us is, how we still can be beneficial with concepts like VClusters (VCluster/K3K) or CPs as pods (Kamaji). We think with this solution we have found a way to make capsule still beneficial and even open new use-cases for larger Kubernetes platforms.
Enables more use-cases and provides more flexibility than standard ResourceQuotas or our previous ResourceQuota-Implementation. Autobalancing is no longer given by default, however can be implemented according to your platform’s needs see future ideas.

ResourcePool

ResourcePools allow you to define a set of resources, similar to how ResourceQuotas work. ResourcePools are defined at the cluster scope and should be managed by cluster administrators. However, they provide an interface where cluster administrators can specify from which namespaces resources in a ResourcePool can be claimed. Claiming is done via a namespaced CRD called ResourcePoolClaim.

It is then up to the group of users within those namespaces to manage the resources they consume per namespace. Each ResourcePool provisions a ResourceQuota into all the selected namespaces. Essentially, when ResourcePoolClaims are assigned to a ResourcePool, they stack additional resources on top of that ResourceQuota, based on the namespace from which the ResourcePoolClaim was created.

You can create any number of ResourcePools for any kind of namespace — they do not need to be part of a Tenant. Note that the usual ResourceQuota mechanisms apply when, for example, the same resources are defined in multiple ResourcePools for the same namespaces (e.g., the lowest defined quota for a resource is always considered).

apiVersion: capsule.clastix.io/v1beta2
kind: ResourcePool
metadata:
  name: example
spec:
  quota:
    hard:
      limits.cpu: "2"
      limits.memory: 2Gi
      requests.cpu: "2"
      requests.memory: 2Gi
      requests.storage: "5Gi"
  selectors:
  - matchLabels:
      capsule.clastix.io/tenant: example

Selection

The selection of namespaces is done via labels, you can define multiple independent LabelSelectors for a ResourcePool. This gives you a lot of flexibility if you want to span over different kind of namespaces (eg. all namespaces of multiple Tenants, System Namespaces, stages of Tenants etc.)

Here’s an example of a simple Selector:

---
apiVersion: capsule.clastix.io/v1beta2
kind: ResourcePool
metadata:
  name: solar
spec:
  quota:
    hard:
      limits.cpu: "2"
      limits.memory: 2Gi
  selectors:
  - matchLabels:
      capsule.clastix.io/tenant: solar

This will select all the namespaces, which are part of the Tenant solar. Each statement under selectors is treated independent, so for example this is how you can select multiple Tenant’s namespaces:

apiVersion: capsule.clastix.io/v1beta2
kind: ResourcePool
metadata:
  name: green
spec:
  quota:
    hard:
      limits.cpu: "2"
      limits.memory: 2Gi
  selectors:
  - matchLabels:
      capsule.clastix.io/tenant: solar
  - matchLabels:
      capsule.clastix.io/tenant: wind

Quota

Nothing special here, just all the fields you know from ResourceQuotas. The amount defined in quota.hard represents the total resources which can be claimed from the selected namespaces. Through claims the ResourceQuota is then increased or decreased. Note the following:

You can’t decrease the .spec.quota.hard if the current allocation from claims is greater than the new decreased number. You must first release claims, to free up that space.
You can decrease or remove resources, if they are unused (0)

Other than that, you can use all the fields from ResourceQuotas

---
apiVersion: capsule.clastix.io/v1beta2
kind: ResourcePool
metadata:
  name: best-effort-pool
spec:
  selectors:
  - matchExpressions:
    - { key: capsule.clastix.io/tenant, operator: Exists }
  quota:
    hard:
      cpu: "1000"
      memory: "200Gi"
      pods: "10"
    scopeSelector:
      matchExpressions:
      - operator: In
        scopeName: PriorityClass
        values:
        - "best-effort"

Each ResourcePool is representative for one ResourceQuota. In contrast to the old implementation, where multiple ResourceQuotas could have been defined in a slice. So if you eg. want to use different scopeSelectors or similar, you should create a new ResourcePool for each.

---
apiVersion: capsule.clastix.io/v1beta2
kind: ResourcePool
metadata:
  name: gold-storage
spec:
  selectors:
  - matchExpressions:
    - { key: company.com/env, operator: In, values: [prod, pre-prod] }
  quota:
    hard:
      requests.storage: "10Gi"
      persistentvolumeclaims: "10"
    scopeSelector:
      matchExpressions:
      - operator: In
        scopeName: VolumeAttributesClass
        values: ["gold"]

Defaults

Defaults can contain resources, which are not mentioned in the Quota of a ResourcePool. This is mainly to allow you, to block resources for example:

---
apiVersion: capsule.clastix.io/v1beta2
kind: ResourcePool
metadata:
  name: example
spec:
  defaults:
    requests.storage: "0Gi"
  quota:
    hard:
      limits.cpu: "2"
      limits.memory: 2Gi
      requests.cpu: "2"
      requests.memory: 2Gi
      requests.storage: "5Gi"
  selectors:
  - matchLabels:
      capsule.clastix.io/tenant: example

This results in a ResourceQuota from this pool in all selected, which blocks the allocation of requests.storage:

NAME                     AGE   REQUEST                 LIMIT
capsule-pool-example     3s    requests.storage: 0/0

If no Defaults are defined, the ResourceQuota for the ResourcePool is still provisioned but it’s .spec.hard is empty.

---
apiVersion: capsule.clastix.io/v1beta2
kind: ResourcePool
metadata:
  name: example
spec:
  quota:
    hard:
      limits.cpu: "2"
      limits.memory: 2Gi
      requests.cpu: "2"
      requests.memory: 2Gi
      requests.storage: "5Gi"
  selectors:
  - matchLabels:
      capsule.clastix.io/tenant: example

This allows users to essentially schedule anything in the namespace:

NAME                     AGE     REQUEST           LIMIT
capsule-pool-exmaple     2m47s

To prevent this, you might consider using the DefaultsZero option. This option can also be combined with setting other defaults, not part of the .spec.quota.hard. Here we are additionally restricting the creation of persistentvolumeclaims:

apiVersion: capsule.clastix.io/v1beta2
kind: ResourcePool
metadata:
  name: example
spec:
  defaults:
    "count/persistentvolumeclaims": 3
  config:
    defaultsZero: true
  quota:
    hard:
      limits.cpu: "2"
      limits.memory: 2Gi
      requests.cpu: "2"
      requests.memory: 2Gi
      requests.storage: "5Gi"
  selectors:
  - matchLabels:
      capsule.clastix.io/tenant: example

Results in:

NAME                     AGE   REQUEST                                                                                             LIMIT
capsule-pool-example     10h   count/persistentvolumeclaims: 0/3, requests.cpu: 0/0, requests.memory: 0/0, requests.storage: 0/0   limits.cpu: 0/0, limits.memory: 0/0

Options

Options which can be defined on ResourcePool basis and influence the way the ResourcePool is generally acting.

OrderedQueue

ResourecePoolClaims are queued whenever they are allocated to a pool. A pool tries to allocate claims in order based on their creation date. But no matter their creation time, if a claim is requesting too much resources it’s put into the queue but if a lower priority claim still has enough space in the available resources, it will be able to claim them. Eventough it’s priority was lower. Enabling this option respects the order and does not allow ResourecePoolClaims to be skipped, if they exhaust the ResourcePool/Namespace. Meaning the Creationtimestamp matters and if a resource is put into the queue, no other claim can claim the same resources with lower priority.

Default: false

DefaultsZero

Setting the default resources for the ResourceQuota provisioned for the ResourcePool. With this option all resources from the Quota are set to zero. Often this is what you are looking for, users should not be able to use any resources without creating claims. In such scenarios it makes sense to initialize all available resources from the ResourcePool as 0.

Default: false

DeleteBoundResources

When a resourcepool is deleted, the resourceclaims bound to it are disassociated from the resourcepool but not deleted.By Enabling this option, the resourceclaims will be deleted when the resourcepool is deleted, if they are in bound state.

Default: false

LimitRanges

When defining ResourcePools you might want to consider distributing LimitRanges via Tenant Replications:

apiVersion: capsule.clastix.io/v1beta2
kind: TenantResource
metadata:
  name: example
  namespace: solar-system
spec:
  resyncPeriod: 60s
  resources:
    - namespaceSelector:
        matchLabels:
          capsule.clastix.io/tenant: example
      rawItems:
        - apiVersion: v1
          kind: LimitRange
          metadata:
            name: cpu-resource-constraint
          spec:
            limits:
            - default: # this section defines default limits
                cpu: 500m
              defaultRequest: # this section defines default requests
                cpu: 500m
              max: # max and min define the limit range
                cpu: "1"
              min:
                cpu: 100m
              type: Container

ResourcePoolClaims

ResourcePoolClaims declared claims of resources from a single ResourcePool. When a ResourcePoolClaim is successfully bound to a ResourcePool, it’s requested resources are stacked to the ResourceQuota from the ResourcePool in the correspinding namespaces, where the ResourcePoolClaim was declared. So the declaration of a ResourcePoolClaim is very simple:

apiVersion: capsule.clastix.io/v1beta2
kind: ResourcePoolClaim
metadata:
  name: get-me-cpu
  namespace: solar-test
spec:
  pool: "sample"
  claim:
    requests.cpu: "2"
    requests.memory: 2Gi

ResourcePoolClaims are decoupled from the lifecycle of ResourcePools. If a ResourcePool is deleted where a ResourcePoolClaim was bound to, the ResourcePoolClaim becomes unassigned, but is not deleted.

Allocation

The Connection between ResourcePools and ResourcePoolClaims is done via the .spec.pool field. With that field you must be very specific, from which ResourcePool a ResourcePoolClaim claims resources. On the counter-part, the ResourcePool, the namespace from the ResourcePoolClaim must be allowed to claim resources from the ResourcePool.

If you are trying to allocate a Pool which does not exist or is not allowed to be claimed from, from the namespace the ResourcePoolClaim was made, you will get a failed Assigned status:

solar-test   get-me-cpu          Assigned   Failed   ResourcePool.capsule.clastix.io "sample" not found   12s

Similar errors may occur if you are trying to claim resources from a pool, where the given resources are not claimable.

Auto-Assignment

If no .spec.pool was delivered a Webhook will try to evaluate a matching ResourcePool for the ResourcePoolClaim. In that process of evaluation the following criteria are considered:

A ResourcePool has all the resources in their definition available the ResourcePoolClaim is trying to claim.

If no Pool can be auto-assigned, the ResourcePoolClaim will enter an Unassigned state. Where it remains until ResourcePools considering the namespaces the ResourcePoolClaim is deployed in have more resources or a new ResourcePool is defined manually.

The Auto-Assignment Process is only executed, when .spec.pool is unset on Create or Update operations.

Release

If a ResourcePoolClaim is deleted, the resources are released back to the ResourcePool. This means that the resources are no longer reserved for the claim and can be used by other claims. Releasing can be achieved :

By deleting the ResourcePoolClaim object.
By annotating the ResourcePoolClaim with projectcapsule.dev/release: "true". This will release the ResourcePoolClaim from the ResourcePool without deleting the object itself and instantly requeue.

kubectl annotate resourcepoolclaim  skip-the-line -n solar-prod projectcapsule.dev/release="true"

Immutable

Once a ResourcePoolClaim has successfully claimed resources from a ResourcePool, the claim is immutable. This means that the claim cannot be modified or deleted until the resources have been released back to the ResourcePool. This means ResourcePoolClaim can not be expanded or shrunk, without releasing.

Queue

ResourcePoolClaims can always be created, even if the targeted ResourcePool does not have enough resources available at the time. In that case ResourcePoolClaims are put into a Queue-State, where they wait until they can claim the resources they are after. They following describes the different exhaustion indicators and what they mean, in case a ResourcePoolClaim gets scheduled.

When a ResourcePoolClaims is in Queued-State it is still mutable. So Resources and Pool-Assignment can still be changed.

Exhaustions

There are different types of exhaustions which may occur when attempting to allocate a claim. They Status of each claim indicates

PoolExhausted

The requested resources are not available on the ResourcePool. Until other resources release resources or the pool size is increased the ResourcePoolClaim is queued. In this example the ResourcePoolClaim is trying to claim requests.memory=2Gi. However only requests.memory=1Gi are still available to be claimed from the ResourcePool

NAMESPACE    NAME         POOL      STATUS   REASON          MESSAGE                                                          AGE
solar-test   get-mem      sampler   Bound    QueueExhausted   requested: requests.memory=2Gi, queued: requests.memory=1Gi   9m19s

In this case you have the following options:

Request less resources for claiming - requests.memory=1Gi
Wait until resources become from the ResourcePool. When 1Gi of requests.memory gets released, the ResourcePoolClaim will be able to bind requests.memory=2Gi.
Release another ResourcePoolClaim which might free up requests.memory

However, claims which are requesting less than the ResourcePoolClaim solar-test, will be able to allocate their resources. Let’s say we have this second ResourcePoolClaim:

---
apiVersion: capsule.clastix.io/v1beta2
kind: ResourcePoolClaim
metadata:
  name: skip-the-line
  namespace: solar-test
spec:
  pool: "sampler"
  claim:
    requests.memory: 512Mi

Applying this ResourcePoolClaim leads to it being able to bind these resources. This behavior can be controlled with orderedQueue.

NAMESPACE    NAME            POOL      STATUS   REASON          MESSAGE                                                            AGE
solar-test   get-me-cpu      sampler   Bound    PoolExhausted   requested: requests.memory=2Gi, available: requests.memory=512Mi   16m
solar-test   skip-the-line   sampler   Bound    Succeeded       Claimed resources                                                  2s

If orderedQueue is enabled, only the first item that exhausted a resource from the ResourcePool get the PoolExhausted state. Following claims fro the same resources get QueueExhausted.

QueueExhausted

A ResourcePoolClaim with higher priority is trying to allocate these resources, but is exhausting the ResourcePool. The ResourcePool has orderedQueue enabled, meaning that the ResourcePoolClaim with the highest priority must first schedule it’s resources, before any other ResourcePoolClaim can claim further resources. This queue is resource based (eg. requests.memory), ResourcePoolClaim with lower priority may still be Bound, if they are not trying to allocate resources which are being exhausted by another ResourcePoolClaim with highest priority.

NAMESPACE    NAME         POOL      STATUS   REASON          MESSAGE                                                          AGE
solar-test   get-mem      sampler   Bound    QueueExhausted   requested: requests.memory=2Gi, queued: requests.memory=1Gi   9m19s

The above means, that as ResourcePoolClaim with higher priority is trying to allocate requests.memory=1Gi but that already leads to an PoolExhausted for that ResourcePoolClaim.

Priority

The Priority of how the claims are processed, is deterministic defined based on the following order of attributes from each claim:

CreationTimestamp - Oldest first
Name - Tiebreaker
Namespace - Tiebreaker

Tiebreaker: If two claims have the same CreationTimestamp, they are then sorted alphabetically by their Name. If two claims have the same CreationTimestamp and Name, they are then sorted alphabetically by their Namespace. This means that if two claims are created at the same time, and have the same name, the claim with the lexicographically smaller Name will be processed first. If two claims have the same CreationTimestamp, Name, and Namespace, then the namespace is tiebreaking. This may be relevant in GitOps setups.

Operating

Monitoring

TBD (Dashboards) - Call for all Grafana Gods.

Metrics

The following Metrics are exposed and can be used for monitoring:

# HELP capsule_pool_available Current resource availability for a given resource in a resource pool
# TYPE capsule_pool_available gauge
capsule_pool_available{pool="sampler",resource="limits.cpu"} 2
capsule_pool_available{pool="sampler",resource="limits.memory"} 2.147483648e+09
capsule_pool_available{pool="sampler",resource="requests.cpu"} 2
capsule_pool_available{pool="sampler",resource="requests.memory"} 1.610612736e+09
capsule_pool_available{pool="sampler",resource="requests.storage"} 5.36870912e+09

# HELP capsule_pool_limit Current resource limit for a given resource in a resource pool
# TYPE capsule_pool_limit gauge
capsule_pool_limit{pool="sampler",resource="limits.cpu"} 2
capsule_pool_limit{pool="sampler",resource="limits.memory"} 2.147483648e+09
capsule_pool_limit{pool="sampler",resource="requests.cpu"} 2
capsule_pool_limit{pool="sampler",resource="requests.memory"} 2.147483648e+09
capsule_pool_limit{pool="sampler",resource="requests.storage"} 5.36870912e+09

# HELP capsule_pool_resource Type of resource being used in a resource pool
# TYPE capsule_pool_resource gauge
capsule_pool_resource{pool="sampler",resource="limits.cpu"} 1
capsule_pool_resource{pool="sampler",resource="limits.memory"} 1
capsule_pool_resource{pool="sampler",resource="requests.cpu"} 1
capsule_pool_resource{pool="sampler",resource="requests.memory"} 1
capsule_pool_resource{pool="sampler",resource="requests.storage"} 1

# HELP capsule_pool_usage Current resource usage for a given resource in a resource pool
# TYPE capsule_pool_usage gauge
capsule_pool_usage{pool="sampler",resource="limits.cpu"} 0
capsule_pool_usage{pool="sampler",resource="limits.memory"} 0
capsule_pool_usage{pool="sampler",resource="requests.cpu"} 0
capsule_pool_usage{pool="sampler",resource="requests.memory"} 5.36870912e+08
capsule_pool_usage{pool="sampler",resource="requests.storage"} 0

# HELP capsule_pool_namespace_usage Current resources claimed on namespace basis for a given resource in a resource pool for a specific namespace
# TYPE capsule_pool_namespace_usage gauge
capsule_pool_namespace_usage{pool="sampler",resource="requests.memory",target_namespace="solar-test"} 5.36870912e+08


# HELP capsule_claim_condition The current condition status of a claim.
# TYPE capsule_claim_condition gauge
capsule_claim_condition{condition="Assigned",name="large",pool="sampler",reason="PoolExhausted",status="False",target_namespace="solar-prod"} 0
capsule_claim_condition{condition="Assigned",name="skip-the-line",pool="sampler",reason="Succeeded",status="True",target_namespace="solar-test"} 0
capsule_claim_condition{condition="Bound",name="large",pool="sampler",reason="PoolExhausted",status="False",target_namespace="solar-prod"} 1
capsule_claim_condition{condition="Bound",name="skip-the-line",pool="sampler",reason="Succeeded",status="True",target_namespace="solar-test"} 1

Migration

We highly recommend to reassess how you are allocating resources to your tenants and if you want to change the scope of the ResourcePools to be more granular or wider.

To Migrate from the old ResourceQuota to ResourcePools, you can follow the steps below. This guide assumes you want to port the old ResourceQuota to the new ResourcePools in exactly the same capacity and scope.

The steps shown are an example to migrate a single Tenants ResourceQuota to a ResourcePool.

1. Overview

We are working with the following tenant. Asses the Situation of resourceQuotas. This guide is mainly relevant if the scope is Tenant:

apiVersion: capsule.clastix.io/v1beta2
kind: Tenant
metadata:
  labels:
    kubernetes.io/metadata.name: migration
  name: migration
spec:
  owners:
  - clusterRoles:
    - admin
    - capsule-namespace-deleter
    kind: User
    name: bob
  preventDeletion: false
  resourceQuotas:
    items:
    - hard:
        limits.cpu: "2"
        limits.memory: 2Gi
        requests.cpu: "2"
        requests.memory: 2Gi
    - hard:
        pods: "7"
    scope: Tenant
status:
  namespaces:
  - migration-dev
  - migration-prod
  - migration-test
  size: 3
  state: Active

2. Abstracting to ResourcePools

Warning

Do not apply the resourcepools yet, this may lead to workloads not being able to schedule!

We are now abstracting . For each item, we are creating a ResourcePool with the same values. The ResourcePool will be scoped to the Tenant and will be used for all namespaces in the tenant. Let’s first migrate the first item:

---
apiVersion: capsule.clastix.io/v1beta2
kind: ResourcePool
metadata:
  name: migration-compute
spec:
  config:
    defaultsZero: true
  selectors:
  - matchLabels:
      capsule.clastix.io/tenant: migration
  quota:
    hard:
      limits.cpu: "2"
      limits.memory: 2Gi
      requests.cpu: "2"
      requests.memory: 2Gi

The naming etc. is up to you. Important, we again select all namespaces from the migration tenant with the selector capsule.clastix.io/tenant: migration. The defined config is what we deem to be most compatible with the old ResourceQuota behavior. You may change these according to your requirements.

The same process can be repeated for the second item (or each of your items). The ResourcePool will be scoped to the Tenant and will be used for all namespaces in the tenant. Let’s migrate the second item:

---
apiVersion: capsule.clastix.io/v1beta2
kind: ResourcePool
metadata:
  name: migration-size
spec:
  config:
    defaultsZero: true
  selectors:
  - matchLabels:
      capsule.clastix.io/tenant: migration
  quota:
    hard:
      pods: "7"

3. Create ResourcePoolClaims

Now we need to create the ResourcePoolClaims for the ResourcePools. The ResourcePoolClaims are used to claim resources from the ResourcePools to the respective namespaces. Let’s start with the namespace migration-dev:

kubectl get resourcequota -n migration-dev

NAME                  AGE     REQUEST                                                   LIMIT
capsule-migration-0   5m21s   requests.cpu: 375m/1500m, requests.memory: 384Mi/1536Mi   limits.cpu: 375m/1500m, limits.memory: 384Mi/1536Mi
capsule-migration-1   5m21s   pods: 3/3

Our goal is now to port the current usage into ResourcePoolClaims. Here you must make sure, that you might need to allocate more resources to your claims, than currently is needed (eg. to allow RollingUpdates etc.).. For the example we are porting the current usage over 1:1 to ResourcePoolClaims

We created the ResourcePool named migration-compute, where we are going to claim the resources from (for capsule-migration-0). This results in the following ResourcePoolClaim:

---
apiVersion: capsule.clastix.io/v1beta2
kind: ResourcePoolClaim
metadata:
  name: compute
  namespace: migration-dev
spec:
  pool: "migration-compute"
  claim:
    requests.cpu: 375m
    requests.memory: 384Mi
    limits.cpu: 375m
    limits.memory: 384Mi

The same can be done for the capsule-migration-1 ResourceQuota.

---
apiVersion: capsule.clastix.io/v1beta2
kind: ResourcePoolClaim
metadata:
  name: pods
  namespace: migration-dev
spec:
  pool: "migration-size"
  claim:
    pods: "3"

You can create the claims, they will remain in failed state until we apply the ResourcePools:

kubectl get resourcepoolclaims -n migration-dev

NAME      POOL   STATUS     REASON   MESSAGE                                                         AGE
compute          Assigned   Failed   ResourcePool.capsule.clastix.io "migration-compute" not found   2s
pods             Assigned   Failed   ResourcePool.capsule.clastix.io "migration-size" not found      2s

4. Applying and Verifying the ResourcePools

You may now apply the ResourcePools prepared in step 2:

kubectl apply -f pools.yaml
resourcepool.capsule.clastix.io/migration-compute created
resourcepool.capsule.clastix.io/migration-size created

After applying, you should instantly see, that the ResourcePoolClaims in the migration-dev namespace could be Bound to the corresponding ResourcePools:

kubectl get resourcepoolclaims -n migration-dev
NAME      POOL                STATUS   REASON      MESSAGE             AGE
compute   migration-compute   Bound    Succeeded   Claimed resources   4m9s
pods      migration-size      Bound    Succeeded   Claimed resources   4m9s

Now you can verify the new ResourceQuotas in the migration-dev namespace:

kubectl get resourcequota -n migration-dev
NAME                             AGE    REQUEST                                                   LIMIT
capsule-migration-0              23m    requests.cpu: 375m/1500m, requests.memory: 384Mi/1536Mi   limits.cpu: 375m/1500m, limits.memory: 384Mi/1536Mi
capsule-migration-1              23m    pods: 3/3

capsule-pool-migration-compute   110s   requests.cpu: 375m/375m, requests.memory: 384Mi/384Mi     limits.cpu: 375m/375m, limits.memory: 384Mi/384Mi
capsule-pool-migration-size      110s   pods: 3/3

That looks already super promising. Now You need to repeat these steps for migration-prod and migration-test. (Script Contributions are welcome).

5. Removing old ResourceQuotas

Once we have migrated all resources over the ResourcePoolClaims, we can remove the ResourceQuota system. First of all, we are removing the .spec.resourceQuotas entirely. Currently it will again add the .spec.resourceQuotas.scope field, important is, that no more .spec.resourceQuotas.items exist:

apiVersion: capsule.clastix.io/v1beta2
kind: Tenant
metadata:
  labels:
    kubernetes.io/metadata.name: migration
  name: migration
spec:
  owners:
  - clusterRoles:
    - admin
    - capsule-namespace-deleter
    kind: User
    name: bob
  resourceQuotas: {}

This will remove all ResourceQuotas from namespace, verify like:

kubectl get resourcepoolclaims -n migration-dev

capsule-pool-migration-compute   130m   requests.cpu: 375m/375m, requests.memory: 384Mi/384Mi   limits.cpu: 375m/375m, limits.memory: 384Mi/384Mi
capsule-pool-migration-size      130m   pods: 3/3

Success 🍀

Why this is our answer

This part should provide you with a little bit of back story, as to why this implementation was done the way it currently is. Let’s start.

Since the begining of capsule we are struggeling with a concurrency probelm regarding ResourcesQuotas, this was already early detected in Issue 49. Let’s quickly recap what really the problem is with the current ResourceQuota centric approach.

With the current ResourceQuota with Scope: Tenant we encounter the problem, that resourcequotas spread across multiple namespaces refering to one tenant quota can be overprovisioned, if an operation is executed in parallel (eg. total is services/count: 3, in each namespace you could then create 3 services, leading to a possible overprovision of hard * amount-namespaces). The Problem in this approach is, that we are not doing anything with Webhooks, therefor we rely on the speed of the controller, where this entire construct becomes a matter of luck and racing conditions.

So, there needs to be change. But times have also changed and we have listened to our users, so the new approach to ResourceQuotas should:

Not exclusively be scoped to one Tenant. Often scenarios include granting resources to multiple Tenants eg.
- When a application has multiple stages split into multiple stages
- An Application-Team owns multiple Tenants
- You want to share resources amongst applications of the same stage.
Select based on namespaces, even if they are not part of the Tenant ecosystem. Often the requirement to control resources for operators, which make up your distribution, must also be guardlined across n-namespaces.
Supplement new generation technology like Kamaji, vCluster or K3K. All these tool abstract Kubernetes into Pods. We also want to provide a solution which still proves capsule relevant in combination with such modern tools.
Shifting Resource-Management to Tenant-Owners while Cluster-Administrators orchestrate a greater Pool of resources.
Consistency!!

Our initial Idea for a redesign was simple: What if we just intercepted operations on the resourcequota/status subresource and calculate the offsets (or essentially what still can fit) on a Admission-Webhook. If another operation would have taken place the client operation would have thrown a conflict and rejected the admission, until it retries. Makes sense, right?

Here we have the problem, that even if we would block resourcequota status updates and wait until the actual quantity was added to the total, the resources have already been scheduled. The reason for that, is that the status for resourcequotas is eventually consistent, but what really matters at that moment is the hard spec (see this response from a maintainer kubernetes/kubernetes#123434 (comment)). So essentially no matter the status, you can always provision as much resources, as the .spec.hard of a ResourceQuota indicates. This makes perfect sense, if your ResourceQuota is acting in a single namespace. However in our scenario, we have the same ResourceQuota in n-namespaces. So the overprovisioning problem still persists.

Thinking of other ways: So the next idea was essentially increasing the ResourceQuota.spec.hard based on the workloads which are added to a namespaces (essentially a reversed approach). The workflow for this would look like something like this:

All resourcequotas get for their hard spec 0
New resource is requested (Evaluation what’s needed at Admission)
Controller gives the requested resources to the quota (by adding it to the total and updating the hard)

This way it’s only possible to scheduled “ordered”. In conclusion this would also downscale the resourcequota when the resources are no longer needed. This is how ResourceQuotas from the Kubernetes Core-API reject workload, when you try to allocate a Quantity in a namespaces, but the ResourceQuota does not have enough space.

But there’s some problems with this approach as well:

if you eg. schedule a pod and the quota is count/0 there’s no admission call on the resourcequota, which would be the easiest. So we would need to find a way to know, there’s something new requesting resources. For example Rancher works around this problem with namespaced DefaultLimits. But this is not the agile approach we would like to offer.
The only indication that I know of is that we get an Event, which we can intercept with admission (ResourceQuota Denied), regarding quotaoverprovision.

If you eg update the resource quota that a pod now has space, it takes some time until that’s registered and actually scheduled (just tested it for pods). I guess the timing depends on the kube-controller-manager flag --concurrent-resource-quota-syncs and/or `–resource-quota-sync-period

So it’s really really difficult to increase quotas by the resources which are actually requested, especially the adding new resources process is where the performance would take a heavy hit.

Still thinking on this idea, the optimal solution would have been to calculate everything at admission and keep the usage vs available state on a global resources but not provisioning namespaced ResourceQuotas. This would have taken a bit pressure from the entire operation, as the resources would not have to be calculated twice (For our GlobalResourceQuota and the core ResourceQuota). In addition we should have added

So that’s when we discarded everything and came up with the concept of ResourcePools and ResourcePoolClaims.

Future Ideas

We want to keep this API as lightweight as possible. But we have already identified use-cases with customers, which make heavy use of ResourcePools:

JIT-Claiming: Every Workload queues it’s own claim when being submitted to admission. The respective claims are bound to the lifecycle of the provisioned resource.
Node-Population: Populate the Quantity of a ResourcePool based on selected nodes.

Last modified May 22, 2025: feat: minor corrections (#25) (d2d1630)
