Headlamp
Headlamp is an easy-to-use and extensible Kubernetes web UI.
Headlamp was created to blend the traditional feature set of other web UIs/dashboards (i.e., to list and view resources) with added functionality.
Prerequisites
- You will need a running Capsule Proxy instance.
- For Authentication you will need a Confidential OIDC client configured in your OIDC provider, such as Keycloak, Dex, or Google Cloud Identity. By default the Kubernetes API only validates tokens against a Public OIDC client, so you will need to configure your OIDC provider to allow the Headlamp client to issue tokens. You must make use of the Kubernetes Authentication Configuration, which allows to define multiple audiences (clients). This way we can issue tokens for a headlamp client, which is Confidential (Client Secret), and a kubernetes client, which is Public. The Kubernetes API will validate the tokens against both clients. The Config might look like this:
apiVersion: apiserver.config.k8s.io/v1beta1
kind: AuthenticationConfiguration
jwt:
- issuer:
url: https://keycloak/realms/realm-name
audiences:
- kubernetes
- headlamp
audienceMatchPolicy: MatchAny # This one is important
claimMappings:
username:
claim: 'email'
prefix: ""
groups:
claim: 'groups'
prefix: ""
Integration
To install Headlamp, you can use the Helm chart provided in the Headlamp repository. It’s a bit special how Headlamp handles Certificate Authorities. We need to inject the capsule-proxy CA into the trust store for Headlamp. In the below example we are using the CA Bundle from alpine (because we also need to trust the CA of the OIDC Issuer, in this case it uses Let’s Encrypt). See the issues #3707 and #127. Essentially Golang uses some environment variables to allow specifying cert files/dirs overriding the system defaults. By Default this is under /etc/ssl/. You can change this behavior by defining the environment variables SSL_CERT_FILE or/and SSL_CERT_DIR.
It’s recommended to install headlamp in the capsule-system namespace. Otherwise you need to somehow replicate the internal ca secret to the namespace, where headlamp is deployed to. For this case Cert-Manager Trust-Bundles might be useful.
With the following values we got it to work:
config:
inCluster: true
extraArgs:
- -insecure-ssl
env:
- name: KUBERNETES_SERVICE_HOST
value: "capsule-proxy.capsule-system.svc"
- name: KUBERNETES_SERVICE_PORT
value: "9001"
- name: "OIDC_ISSUER_URL"
value: "https://keycloak/realms/realm-name"
- name: "OIDC_CLIENT_ID"
value: "headlamp"
- name: "OIDC_CLIENT_SECRET"
value: "<SECRET>"
- name: "OIDC_USE_ACCESS_TOKEN"
value: "false"
- name: "OIDC_SCOPES"
value: "openid profile email groups offline_access"
volumeMounts:
- mountPath: /var/run/secrets/kubernetes.io/serviceaccount
name: token-ca
- name: ca-store
mountPath: /etc/ssl/
volumes:
- name: ca-store
emptyDir: {}
- name: capsule-proxy
secret:
secretName: capsule-proxy
- name: token-ca
projected:
sources:
- serviceAccountToken:
path: token
- secret:
name: capsule-proxy
items:
- key: ca.crt
path: ca.crt
- downwardAPI:
items:
- fieldRef:
apiVersion: v1
fieldPath: metadata.namespace
path: namespace
initContainers:
- name: add-ca
image: alpine:3
command: ["/bin/sh","-c"]
args:
- |
set -e
cp -R /etc/ssl/* /work/
cat /ca/ca.crt >> /work/certs/ca-certificates.crt
volumeMounts:
- name: ca-store
mountPath: /work
- name: capsule-proxy
mountPath: /ca
securityContext:
capabilities:
drop:
- ALL
readOnlyRootFilesystem: false
allowPrivilegeEscalation: false
privileged: false
runAsUser: 65534
runAsGroup: 65534
fsGroup: 65534
fsGroupChangePolicy: "Always"
podSecurityContext:
runAsNonRoot: true
seccompProfile:
type: RuntimeDefault
securityContext:
capabilities:
drop:
- ALL
readOnlyRootFilesystem: false
allowPrivilegeEscalation: false
privileged: false
runAsUser: 100
runAsGroup: 101
fsGroup: 101
fsGroupChangePolicy: "Always"
Note: The secret capsule-proxy refers to the secret which is being used by the capsule-proxy instance directly, not the self-signed-ca secret.

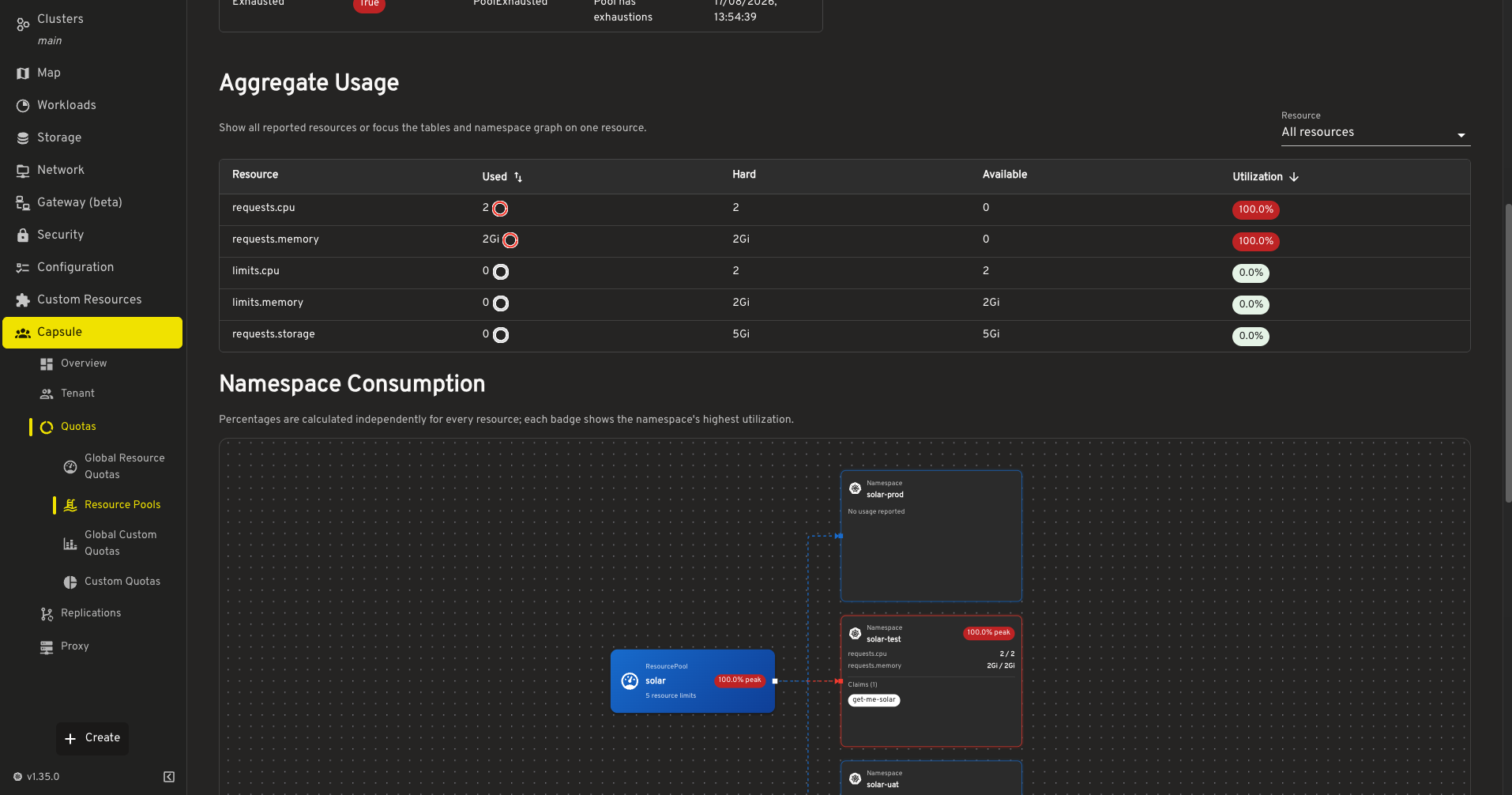

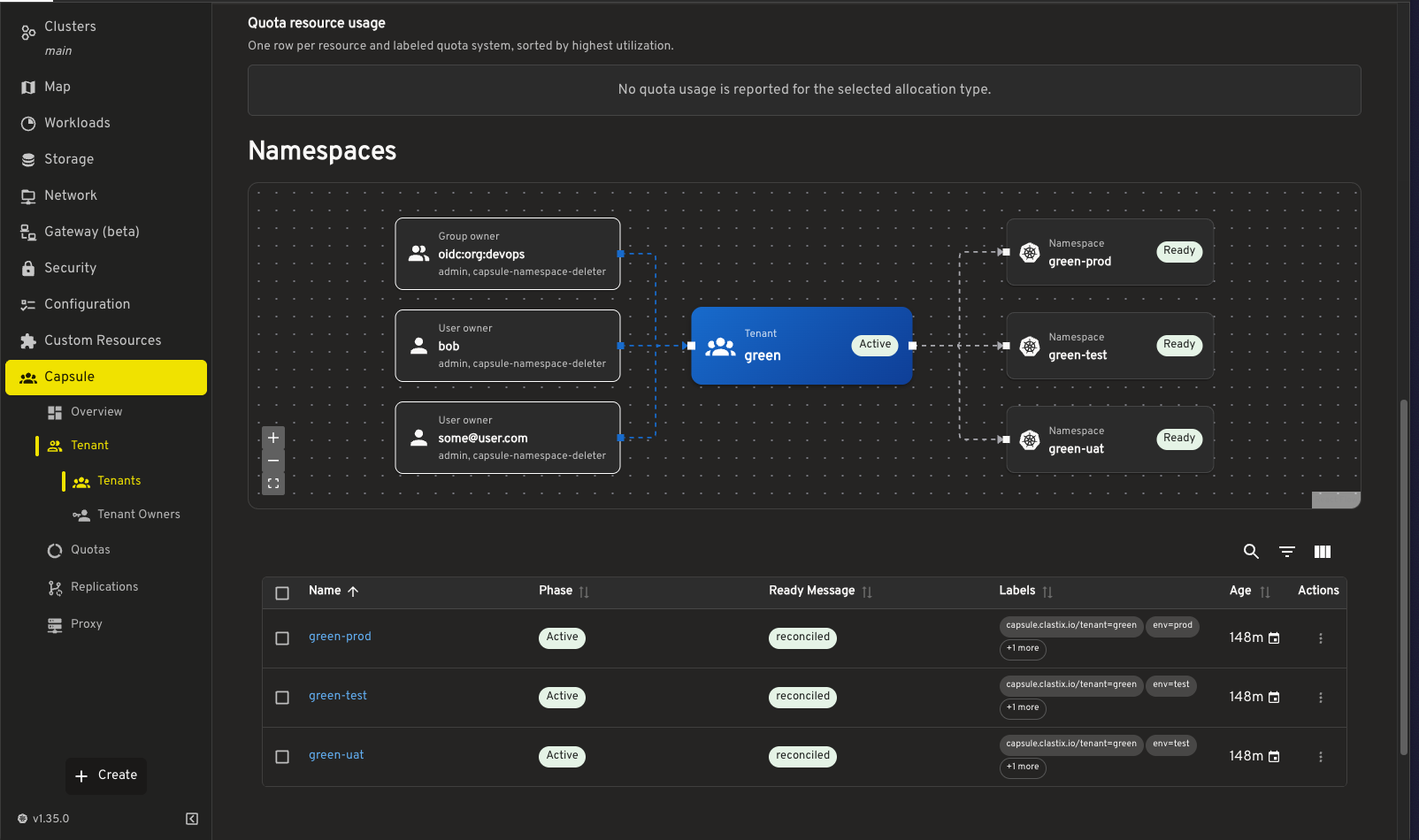

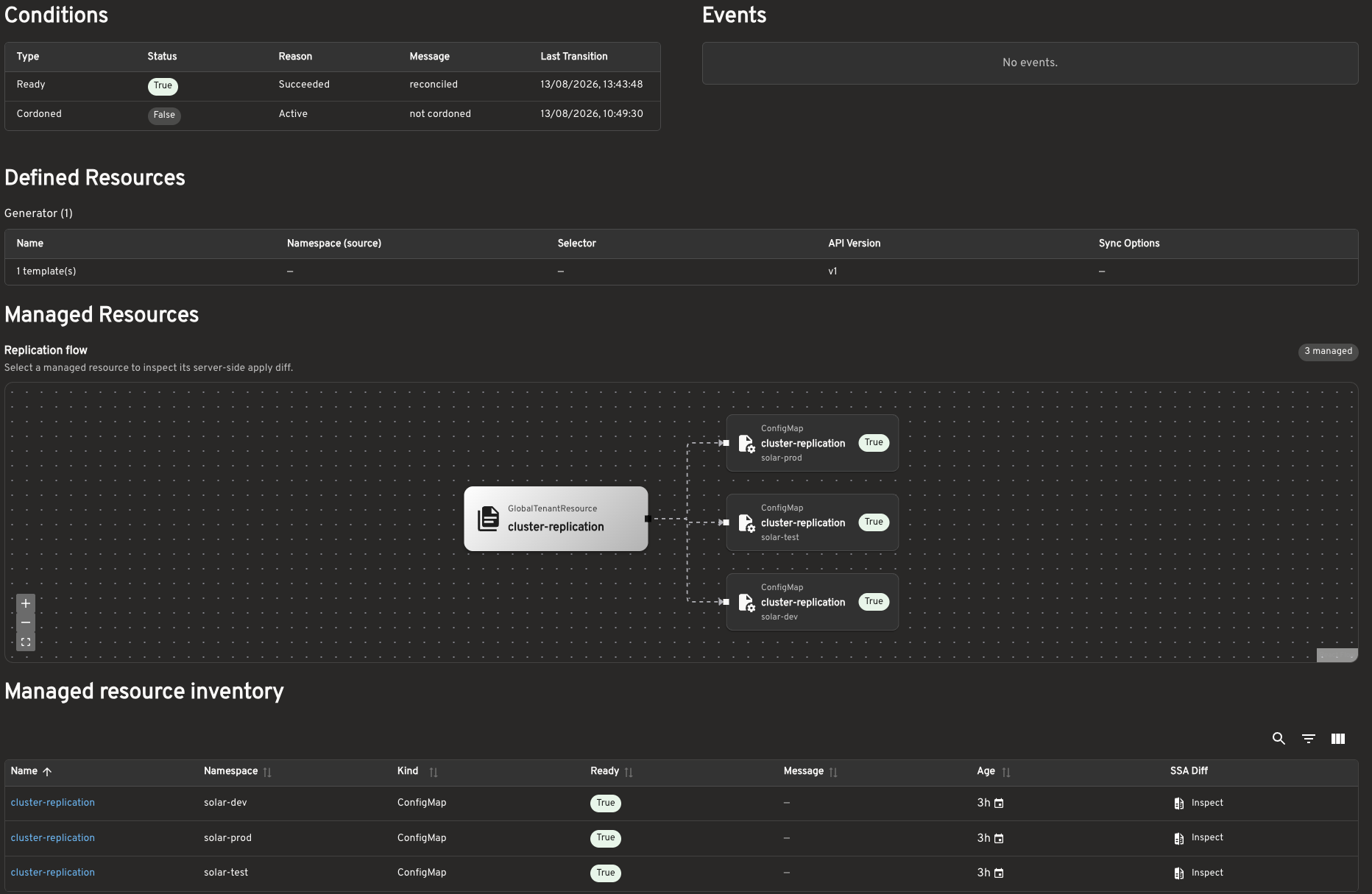

Plugins
We are commitet to provide a set of plugins to enhance the user experience with Capsule and Headlamp. Any community contribution is welcome, so feel free to open a PR with your plugin.
